    ISO Certified Electric Mobile Glass Vacuum Lifter for Marble Wood Glass Lifting Robot

    Ask Lasest Price
    Supply Ability : 2 Sets/Mouth
    Certification : ISO 9001
    Delivery Time : Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
    Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
    • Product Details
    • Company Profile

    ISO Certified Electric Mobile Glass Vacuum Lifter for Marble Wood Glass Lifting Robot


    Electric Mobile Glass Vacuum Lifter equipment For marble wood Glass Lifting Robot
    The lifter is designed for electric and hydraulic operation. The entire system consists of electric vacuum gripping device, hydraulic performance devices, electric driving system and safety protection system, to achieve gripping, lifting, handling, moving and placing glass to specific location by serial of process setting. The lifter can be assembled to various kinds of models to fit for different size of glass.

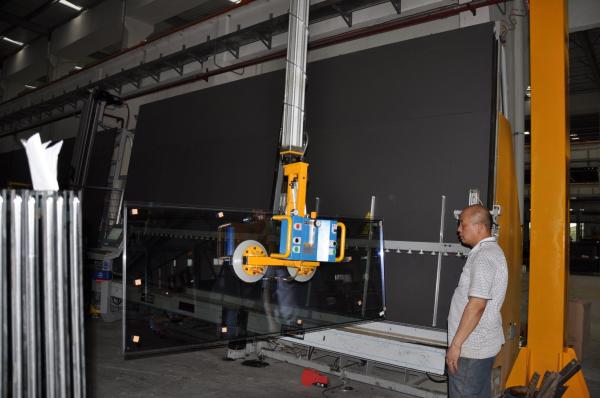

    Detailed Photos
    Electric Mobile Glass Vacuum Lifter Equipment for Marble Wood Glass Lifting RobotElectric Mobile Glass Vacuum Lifter Equipment for Marble Wood Glass Lifting RobotElectric Mobile Glass Vacuum Lifter Equipment for Marble Wood Glass Lifting RobotElectric Mobile Glass Vacuum Lifter Equipment for Marble Wood Glass Lifting Robot

    Product Parameters
    CodeSH-CAR-300

    Safe Load Capacity
    300kg

    Number and Size of Pads
    8,250
    6pads/ [250mm]diameter

    Pads Description
    ,,120
    Grey rubber, abrasion resistant, long-time heat resistant up to 120°C

    Product Weight
    890kg

    Product size
    1750mm(L)* 765mm(W) *2000mm(H)

    Max.Glass Size
    2600mm(L)*1500mm(W)*4-25mm(T)

    Min. Glass Size
    1200mm(L) *800mm(W)*4-25mm(T)

    Lifting Material
    ,,,,
    Glass, marble,plastic boards,metal sheet,coated boards and other plates.

    Battery Specs.
    6V 200Ah *4 PC

    Working Power
    24V DC

    Batter Charge
    110-220V 50/60hz

    Noise Level
    Less than 80Db

    Suitable for lifting
    :/;:
    : ,,,,
    Material properties: Gastight/ non-porous, smooth surface
    Example: flat glass, building glass, various kinds of processing glass and special glass.

    Performance
    45°,45°,.
    Electric tilt up 45°,tilt down 45 °, with stopping at any position.
    360°,90.
    Manual rotation 360° ,fasten in each 90°.
    180°.
    Manual turn left and turn right 180°.
    ,3000mm.
    Electric lift up and down up to 3000mm.
    45°.
    Electric arm swings up and down 45°.
    780mm.
    Electric extend the lifting arm to 780mm.
    Electric motor car, control by steering wheel.
    30%,
    Recharge when electricity power less than 30%.

    Safety protection
    ,;,.
    When vacuum reaches to the specified pressure,vacuum pump automatically stops to achieve energy saving; when vacuum pressure is insufficient,it automatically restarts to achieve vacuum compensation.

    Packaging & Shipping
    Electric Mobile Glass Vacuum Lifter Equipment for Marble Wood Glass Lifting Robot Electric Mobile Glass Vacuum Lifter Equipment for Marble Wood Glass Lifting Robot
    Company Profile
    Electric Mobile Glass Vacuum Lifter Equipment for Marble Wood Glass Lifting Robot Foshan Star Glass Machinery Co,.Ltd.
    Founded in 2010, Foshan Star Glass Machinery Co., Ltd. is a high-tech enterprise specializing in the
    production, research and development and sales of glass deep processing machinery. The company is
    located in Foshan City, a major glass machinery center.
    The company is committed to the production of glass radiant tempering furnace, convection tempering
    furnace, flat bending dual-purpose tempering furnace, automotive glass bending furnace, nonautoclave
    PVB laminating production line.
    After years of hard work and exploration, the company has obtained a number of national patents, and
    its technology is ahead of the domestic level. The products sell well all over China and are exported to
    Australia, the United States, the Middle East, India, Vietnam, South America and other places.
    Companies adhering to the principle of quality first, service-oriented, and constantly improve the
    company's level and product quality, and strive to create a skilled, high-quality team. We will sincerely
    cooperate with new and old customers at home and abroad with sincerity and jointly develop the
    bright road of glass machinery manufacturing industry.

    Exhibition
    Electric Mobile Glass Vacuum Lifter Equipment for Marble Wood Glass Lifting RobotElectric Mobile Glass Vacuum Lifter Equipment for Marble Wood Glass Lifting RobotFAQ

    1. who are we?
    We are based in Guangdong, China, start from 2011,sell to South America(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Africa(10.00%),North America(10.00%),Western Europe(3.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Glass Machine,Glass Furnace,Glass Bending Furnace,Glass Bending And Tempering Furnace,Glass Machines

    4. why should you buy from us not from other suppliers?
    Our company has a professional R & D team and a strict quality management system. 10 years of export experience. Mature after-sales installation team.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CIF,EXW,DDP;
    Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish,Japanese,Arabic,French,Russian
